MRI (Magnetic Resonance Imaging)

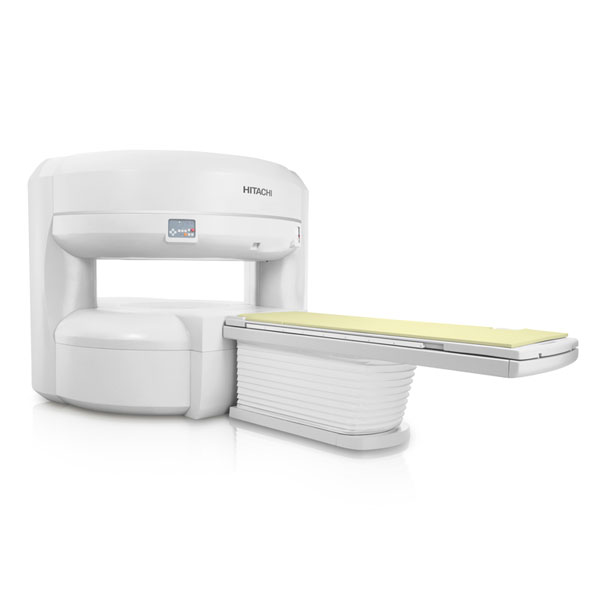

Hitachi - AIRIS II

We supply an extensive range of AIRIS II that ensures to provide high image quality and reliability. Manufactured by award-winning, Panoramic, these are designed in compliance with the latest technological advancements in the market. These have fast gradients and sophisticated sequence capabilities.

Specifications

• Award winning asymmetrical design
• Gap: 43cm (17 inches)
• Table width: 80cm (31.5 inches)
• Table drop: 45cm (17.7 inches)
• Table weight limit of 500 lbs
• Two speed power driven longitudinal movement

Gradient System

• 8mT/m Gradient Amplitude
• 11T/m/sec Slew Rate

Computer System

• 64-bit RISC based architecture
• 1GB memory
• LCD Color Display
• DICOM 3.0 compatibility

Magnet

• 0.3 Tesla
• Permanent
• Vertical Orientation
• Self Shielded
• 6.6'(h) x 8.2'(v) 5 Gauss fringe field
• Three-axis, per patient shim post to post: 110cm (43.3 inches)

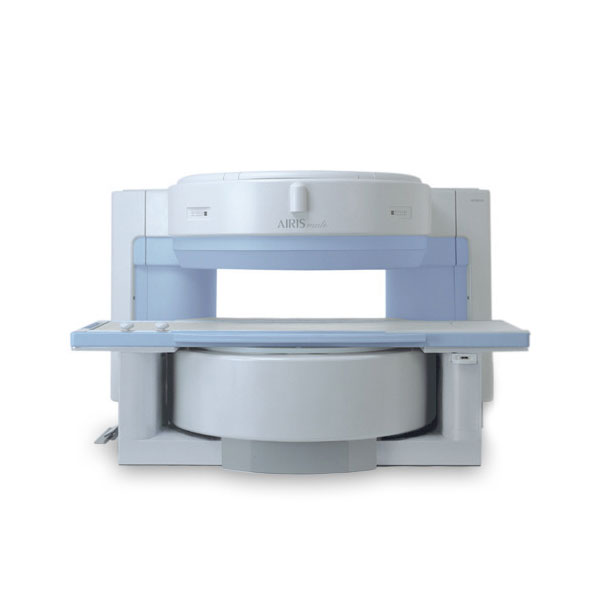

Hitachi Airis

The AIRIS offered by us is a MR system, which is known for its award winning gantry design, high performance, and dependability. Based on latest technological advancements in the market, these systems is sure to provide high image quality and durability.

Specifications

• Award winning asymmetrical design
• Gap: 43cm (17 inches)

Gradient System

• Table width: 80cm (31.5 inches)
• Table drop: 45cm (17.7 inches)
• Table weight limit of 500 lbs
• Two speed power driven longitudinal movement

Gradient System

• 8mT/m Gradient Amplitude
• 11T/m/sec Slew Rate

Computer System

• 16MB memory
• High-resolution display (512 X 512)
• DICOM 3.0 compliance (optional)

Magnet

• 0.3 Tesla
• Permanent
• Vertical Orientation
• Self Shielded 6.6'(h) x 8.2'(v) 5 Gauss fringe field
• Three-axis, per patient shim
• Post to post: 110cm (43.3 inches)

GE 1.5T MRI Scanner

We can offer a range of GE 1.5T MRI systems. Starting from the EchoSpeed 9x systems to the top end Signa Excite 15x HD systems. Our offer includes complete site planning, installation and application training. These systems are also upgradeable at site to the higher HDxT platforms. The general specification of these magnets include:

Specifications

• Super-conducting CXK4 Magnet with advanced cryo-cooling technology
• Magnetic Shielding: Active Shielding
• 18 Superconducting Advanced Shim
• EMI Shielding
• Typical Magnet Homogeneity (V-RMS methods)
• 10 cm DSV : > 0.025 ppm
• 20 cm DSV : > 0.05 ppm
• 30 cm DSV : > 0.25 ppm
• 40 cm DSV : > 0.50 ppm
• 45 cm DSV : > 0.63 ppm
• Helium Boil-Off : 0.03 Litre Hour
• Helium Refill interval : 3 years
• Magnet Weight with Cryogen : 5,863 Kg
